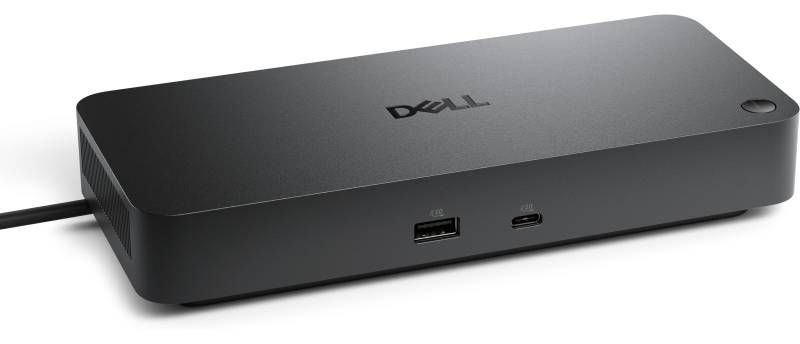

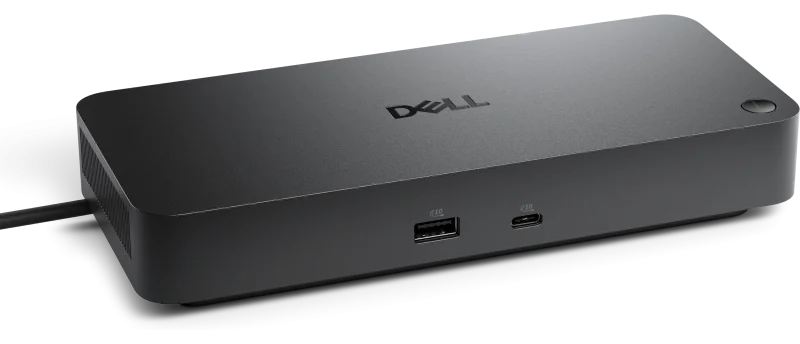

DELL PRO DOCK WD25TB5, Connectivity Technology: Wired, Device Supported: Notebook, Desktop PC, Cable Length: 83 cm, Features: Power Delivery Pass-through, LED Power Indicator, Indicator Light, Management Features: Intel AMT over Thunderbolt with select

Caracteristici principale

• Power Delivery Pass-through
• LED Power Indicator
• Indicator Light

Dimensiuni si greutate

Height

205 mm

Width

90 mm

Depth

35.3 mm, Weight (Approximate): 620 g

Alte detalii

Connectivity Technology

Wired

Device Supported

Notebook, Desktop PC

Cable Length

83 cm

Management Features

Intel AMT over Thunderbolt with select Intel vPro PCs, MAC Address Pass- through, PXE Boot, Dock Power Button Sync, Wake-on-LAN, WLAN to LAN Switch, Kernel Direct Memory Access (DMA) Protection, Dell Command Update (DCU), Port Disablement, Host PC based firmware update, Firmware update on disconnect

Number of Displays Supported

4

Screen Mode Supported

QHD 60Hz, WQHD 60Hz, 4K 60Hz, 5K 60Hz, 6K 60Hz, 8K 60Hz, 4K 120Hz

Supported Resolutions

3840 x 2160, 5120 x 2160, 2560 x 1440, 3440 x 1440, 7680 x 4320, 6144 x 3456

Maximum Data Transfer Rate

1.25 GB/s

Security Slot Type

Kensington Security Slot, Noble Wedge Security Slot

Power Delivery Details

4 x USB-A 3.2 Gen 2 (4.5W each), 1 x USB-C 3.2 Gen 2 (15W), 1 x USB-C Multi-function DisplayPort (7.5W), 2 x Thunderbolt 5 (15W each), All deliver power with or without PC

Power Delivery

Up to 300W (Dell Systems), Up to 240W (non-Dell Systems)

Video Resolution Details

QHD 60Hz (Quad Display), WQHD 60Hz (Triple Display), 4K 60Hz (Dual Display), 5K 60Hz (Single Display), 4K 60Hz (Quad Display), 4K 60Hz (Triple Display), 6K 60Hz (Dual Display), 8K 60Hz (Single Display), 4K 120Hz (Quad Display), 4K 120Hz (Triple Display)

Ethernet Technology

2.5 Gigabit Ethernet

Host Interface

Thunderbolt 5

Total Number of USB Ports

6

USB Type-A

Yes, Number of USB 3.2 Gen 2 Type-A Ports: 4, Number of USB 3.2 Gen 2 Type-C Ports: 1

Number of USB Type-A Ports

4

USB Type-C

Yes

USB Type-C Detail

1 x USB-C 3.2 Gen 2 (10 Gbps) (15W), 1 x USB-C Multi-function DisplayPort (7.5W)

Number of USB Type-C Ports

2, Network (RJ-45): Yes

DisplayPort

Yes

Number of DisplayPorts

2

DisplayPort Version

2.1

HDMI

Yes

Number of HDMI Ports

1

HDMI Version

2.1

Thunderbolt

Yes

Thunderbolt Ports Quantity

2

Operating System Supported

Windows 10, Windows 11, Ubuntu 24.04, Red Hat Enterprise Linux 9.7, ChromeOS 141, macOS

Maximum Power Supply Wattage

330 W

Power Source Type

Power Adapter

Package Contents

Pro Dock WD25TB5 Docking Station, Power Adapter, Power Cord, Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot

Yes

Limited Warranty

3 Year

Additional Warranty Information

3- Year Limited Hardware Warranty with Advanced Exchange
