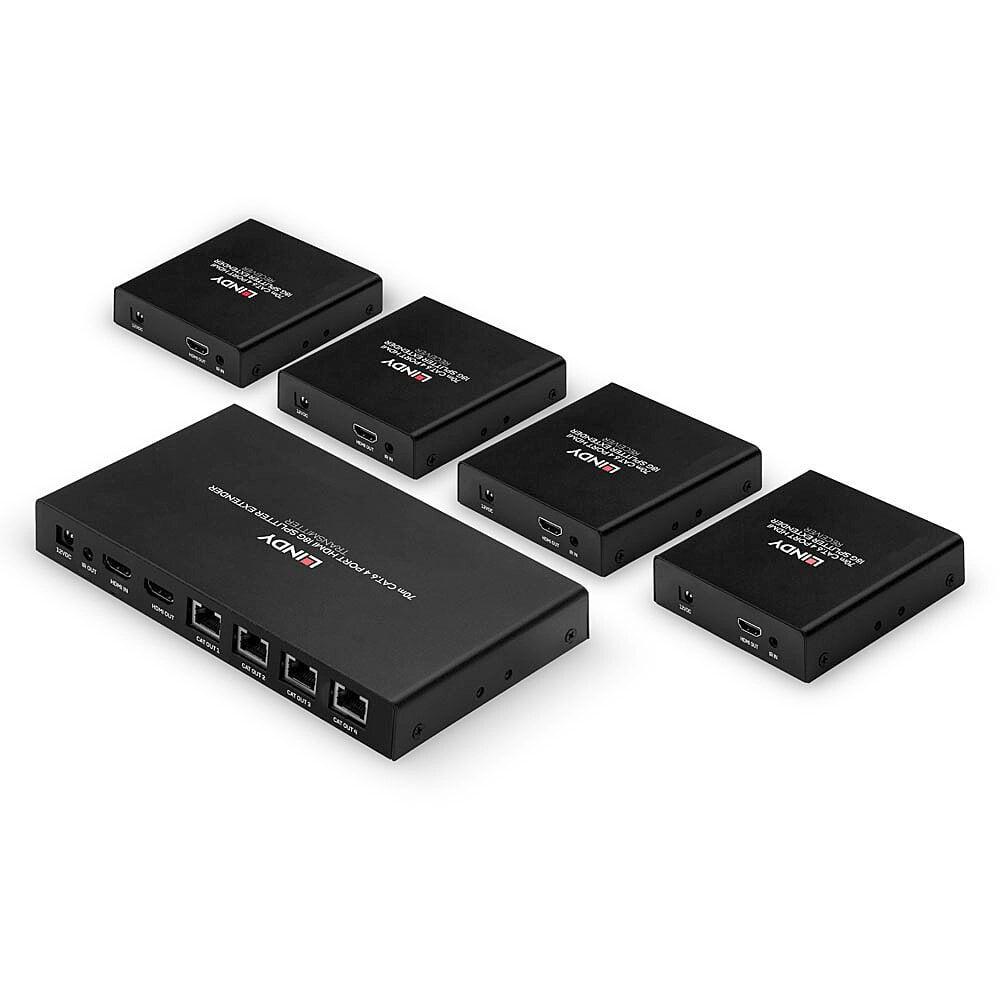

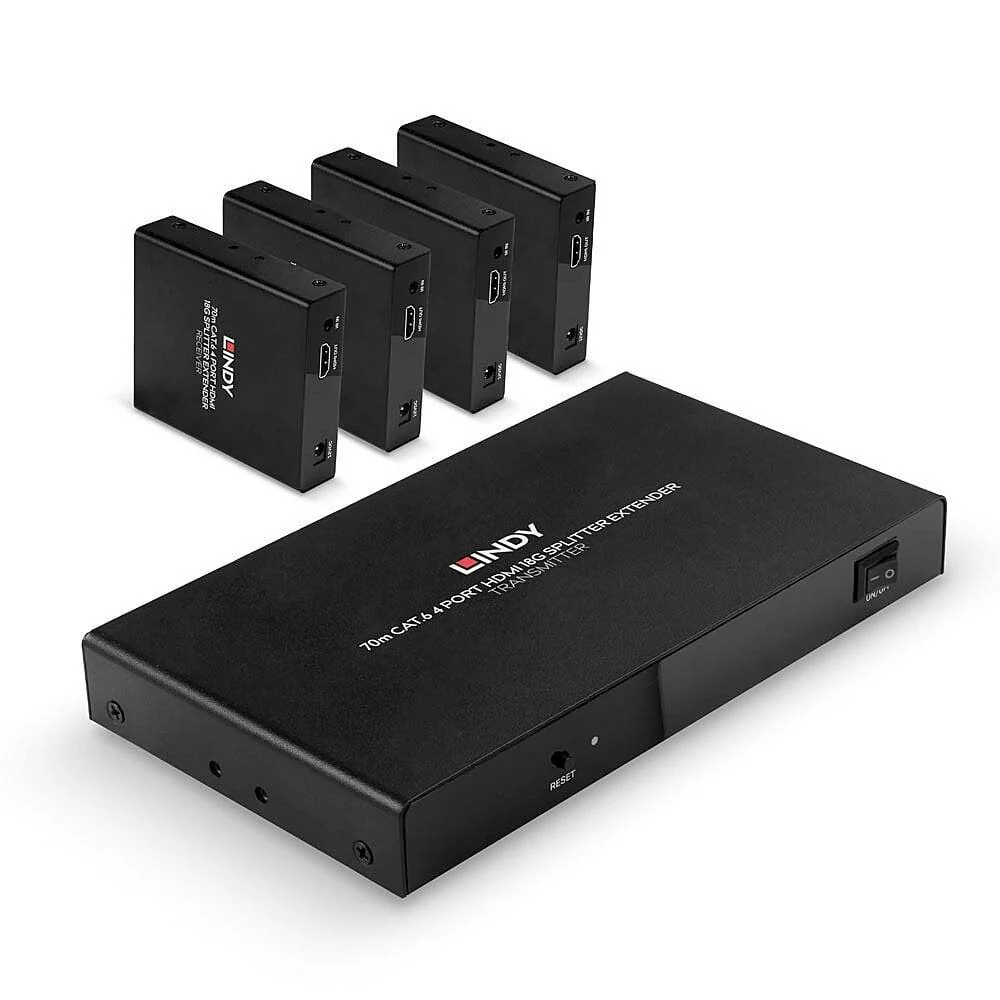

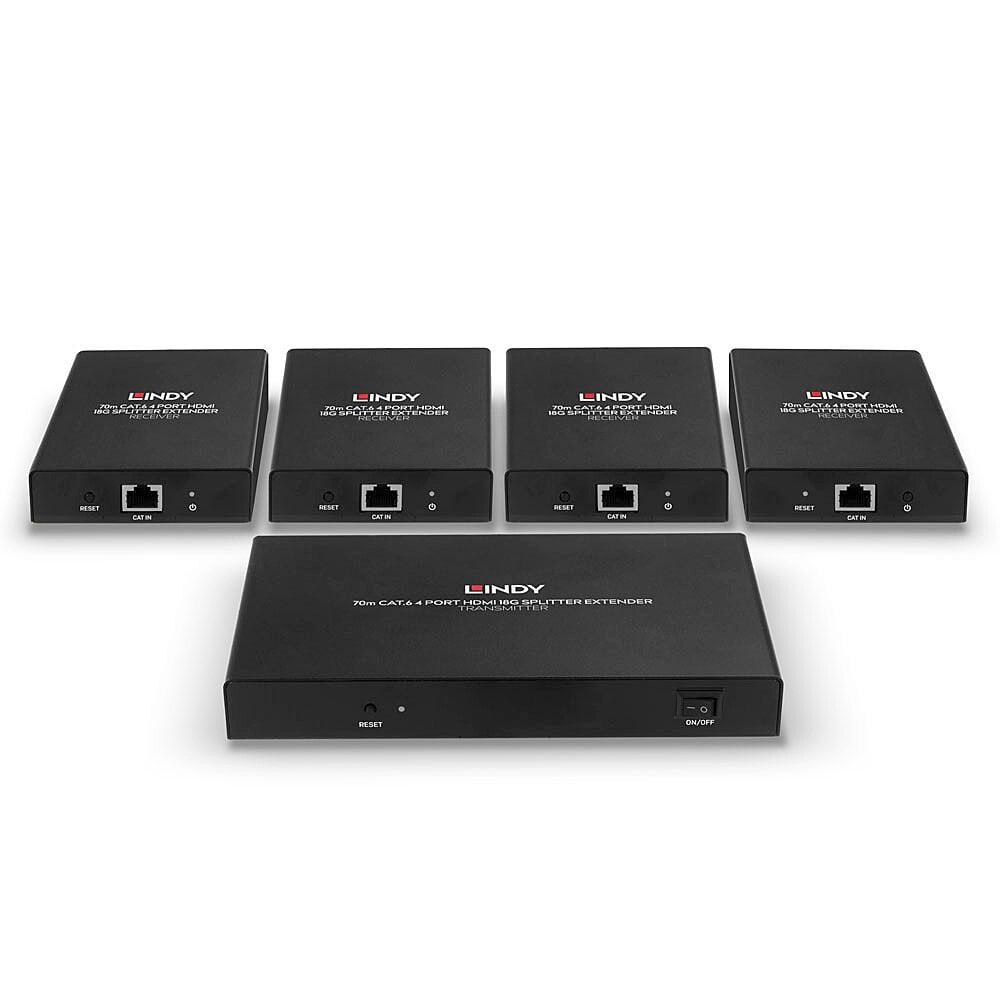

Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender Description Distribute 4K HDMI signals to up to 4 displays in multiple locations Supports resolutions up to 4K@60Hz, with additional support for HDR Features a loop-through HDMI output on the — Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender Description Distribute 4K HDMI signals to up to 4 displays in multiple locations Supports resolutions up to 4K@60Hz, with additional support for HDR Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18Gbps Maximum Distance: 70m (229.66ft) Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID management: Preset Supported Audio: LPCM 2CH Separate Audio Ports: - IR Support: 20-60KHz CEC Support: - Serial Interface: - Transmission Protocol: - Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: GSV2006 & GSV5100 Special Features: PoC (Power over Cable) Connectors Transmitter Input: HDMI Type A (Female) Transmitter Output: 4 x RJ-45 (Female), HDMI Type A (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female) Bi-directional Ports: - Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: Transmitter: 180x103x23mm (7.09x4.06x0.91in)
